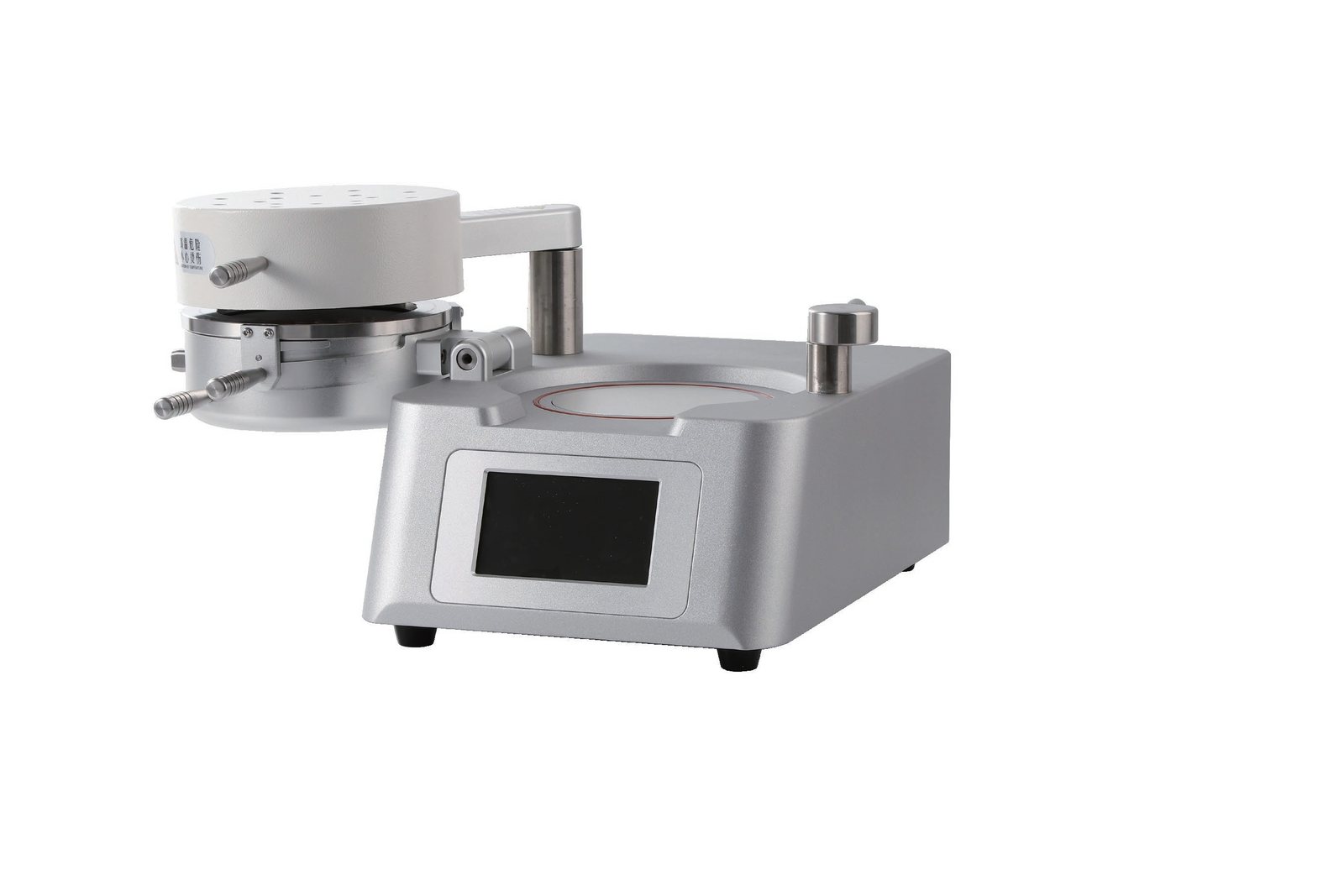

MaxForm L1+ Thermoforming Machine

Pressure thermoforming machine for clear aligners and retainers

The MaxForm L1+ is a pressure thermoforming machine that heats a dental sheet and presses it over a model to form clear aligners, retainers, night guards, and attachment templates. It works with 125 mm round sheets across a 0.4–4.0 mm thickness range, and uses on-screen digital pressure control in place of manual valve adjustment.

Sheet size 125 mm round Thickness range 0.4 – 4.0 mm Work pressure 1 – 6 bar Stored programs Up to 10

Request a quote All products

Why it performs

Engineered for predictable results

The L1+ is built to give dental labs consistent, clinically reliable appliances with less manual fiddling.

Digital pressure control

No more manual valve twisting — pressure is set precisely through on-screen digital input.

Excellent fit

Up to 6 bar of pressure applied in a short burst gives the sheet enough force to fully adapt to the model.

Greater thickness for stronger force

A uniform heating unit produces aligners around 0.1 mm thicker than competitors, preserving more orthodontic force.

Upgraded programmable operation

Stores up to 10 programs on the device for user-friendly, repeatable operation.

Low-porosity forming

CT scans show just 0.08% porosity — far fewer gaps between sheet and model than a measured competitor's 0.17%.

Advanced heating unit

An advanced heater delivers even heat, engineered for high-thickness retention and predictable clinical performance.

What's in the box

Heating unit and clamping system

The L1+ separates into its heating unit, clamping ring, and forming base — making sheet loading and model changes straightforward.

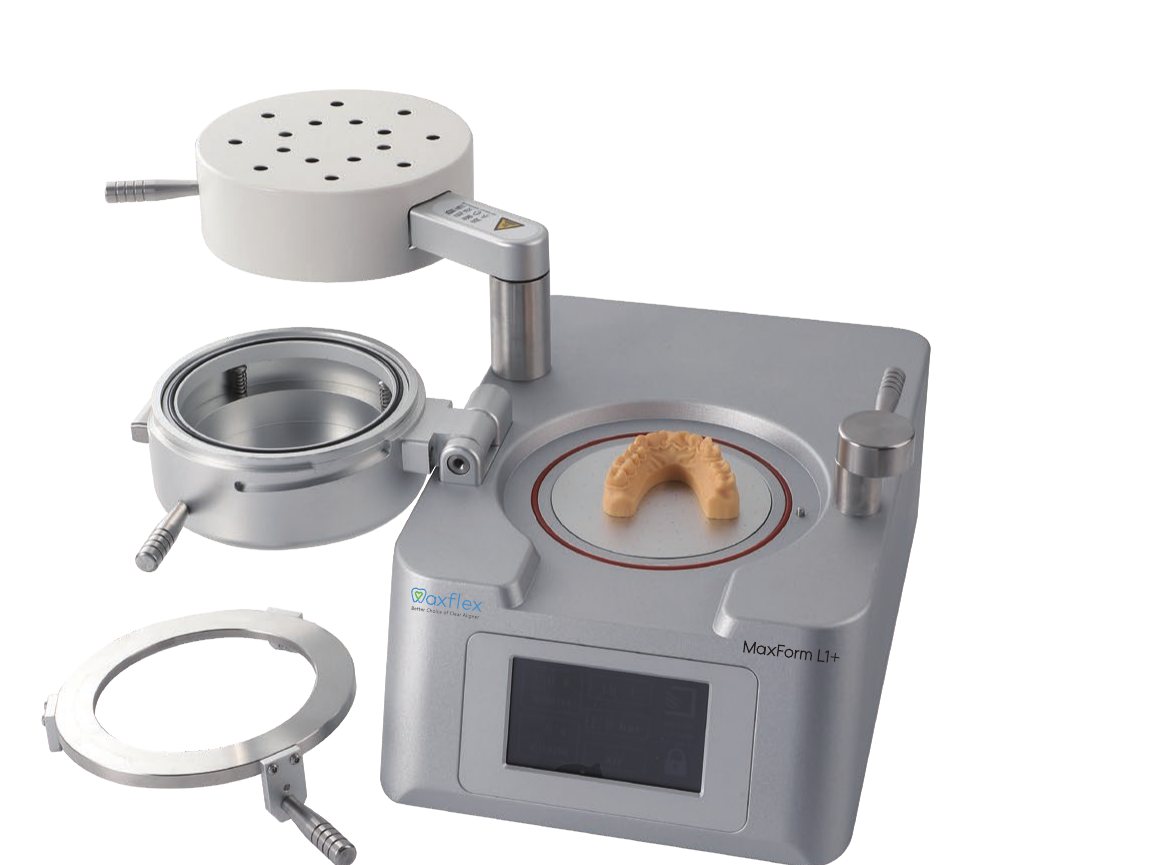

MaxForm L1+ shown with its heating unit and clamping rings separated from the main body — The MaxForm L1+ heating unit and clamping rings.

Reference

Equipment parameters

Key parameters for the MaxForm L1+ thermoforming machine.

Input voltage: 220 V, 50/60 Hz
Output voltage: 24 V
Rated power: 800 W
Heating temperature: 220 °C infrared constant
Fuse type: F6 (6 A) – F12 (12 A)
Work pressure: 1 – 6 bar
Dimensions (L×W×H): 345 × 230 × 223 mm
Weight: 14.5 kg

Suitable for attachments, clear aligners, retainers, mouthguards, and more. Specifications are indicative and for reference only.

Setting up an aligner lab?

Weinberg Healthcare & Technology supplies the MaxForm L1+ across Singapore, Malaysia, Indonesia, and Thailand. Contact us for pricing, sheet compatibility, and full specifications.

Contact our team

Distributed in APAC by Weinberg Healthcare & Technology Pte Ltd.
